Product Advantages: 1. Independent research and development of high-performance main board: It can work continuously for 24 hours, no compatibility problem, no error when printing. 2. Automatic feathering: Print high-definition without drawing. 3. Automatic flash spray: Effectively prevent plugging, one-key cleaning, and easier maintenance. 4. Faster printing: The upgrade adopts the most advanced domestic board and Epson 10th generation printhead, and the speed is twice that of the traditional Epson modified machine. The highest printing height is 3-5MM. 5. Intelligent printing: Mobile APP operation, no need for PS typesetting design, complete models, truly fool-like operation. 6. Independently developed technology leads the trend: The software adds automatic printing function, and the infrared ray accurately measures the height of the product.
Process advantage：
| 1. Wide range of applications: can print mobile phone cases, decorative materials, glass, ceramic tiles, handicrafts, advertisements, toys, shoe materials, PVC, wood, etc. Almost all flat products and cylindrical products can be printed. | ||||||
| 2.Good color fastness: wear-resistant, scratch-resistant, blister-resistant, wind, rain, and sun will not change color for a long time, and can pass the 100-grid test | ||||||
| 3. Fine picture quality: fine picture quality, ultra-high precision, no wire drawing, no burrs. | ||||||
| 4. Embossed printing: print and dry immediately, embossed effect can be printed, the hand feel is obvious, and the printed embossed 3D effect has strong visual impact. | ||||||
| 5. Simple operation: simple operation, one-time printing of finished products, no need for tedious operations such as plate making. |
| Technical Parameters | ||||||

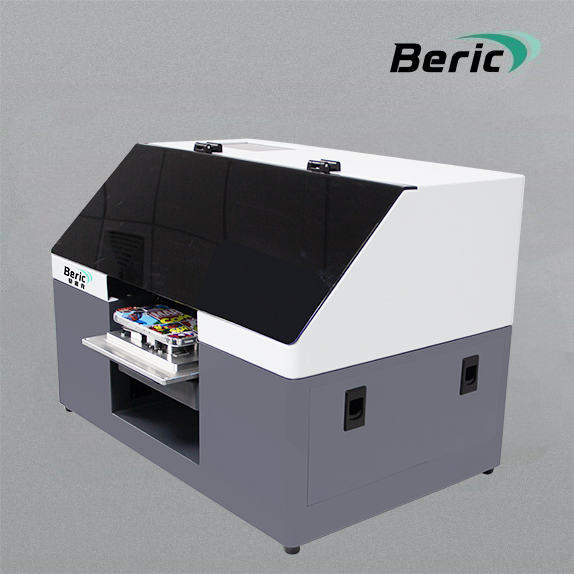

| Model | CH02 A4UV flatbed printer | |||||
| Printhead | Epson 10 gen（XP600） | |||||
| Printer size | 58*47*36cm | |||||
| Printing area | 21*29cm | |||||
| Print speed | 16pass | |||||
| Max print resolution | 1440*2880dpi（With intelligent ink drop conversion technology） （Resolution is inversely proportional to print time） | |||||
| Media thickness | 0-6CM | |||||
| Number of printhead | 1 | |||||
| Ink color | CMYK+white ink (WW) | |||||
| Ink type | UV ink | |||||
| Ink cartridge | Continuous ink supply/Capacity 200ml | |||||
| Drying system | UV_LED sodify | |||||
| Receive file type | TIFF(RGB&CMYK),BMP,PDF,EPS,JPGE etc | |||||
| Power requirements | AC 220-240V，50/60Hz | |||||
| Operating environment | Temperature 10-35C, humidity 20-80RH | |||||
| Operation system | Windows 11/10/8/7/Vista/XP Mac OS X 10.5.8 or above version | |||||
| Power | 100W | |||||
| UV cooling system | Air cooled | |||||
| Operation method | Smart integrated touch screen | |||||
| Warranty period | 2 years warranty for the whole machine except consumables | |||||
| Package size | ||||||
| Printer size | L58cm *W47cm*H36cm | |||||
| Package size | L68cm*W55cm*H45cm | |||||
| Net weight | 24kg | |||||
| Gross weight | 34kg | |||||
| Package | Wooden box | |||||
